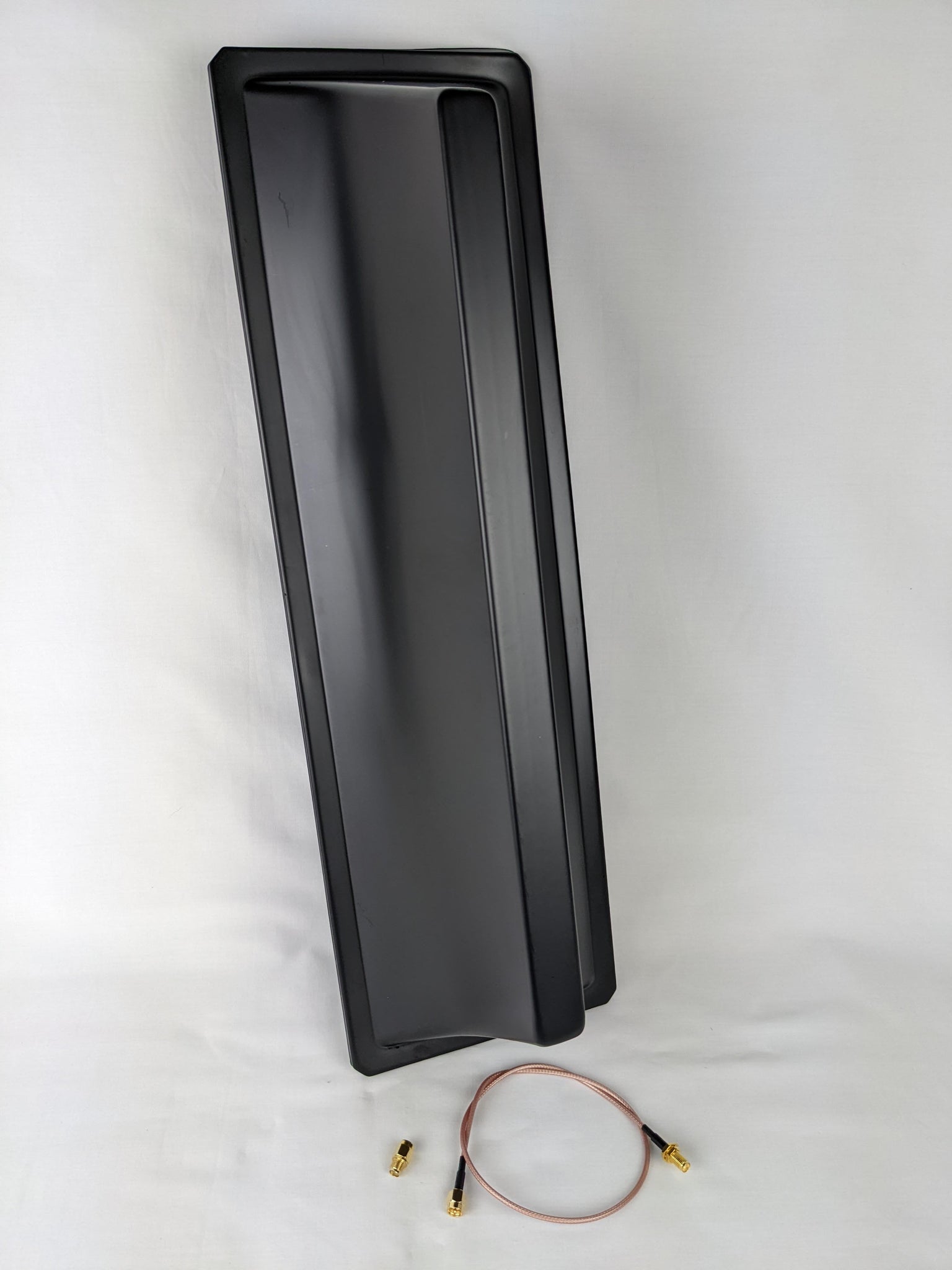

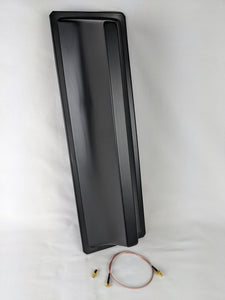

The Radon antenna is a very unique type of directional antenna offering high gain (12dbi) with an extremely wide beam (170 degrees). Designed specifically for Helium mining, the Radon’s wide beam and high gain offers 8 times the amount of coverage of the stock 2dbi antennas allowing you to witness many more radios which greatly increases your revenue. Despite its high gain and wide beam, the Radon has side lobes to the rear making sure you don’t miss out on witnesses not in the antenna’s main beam. Designed by patented inventor Alex Greve using drone antenna technology, the Radon is designed to make you the most money possible whether in an urban environment or in a remote rural location.

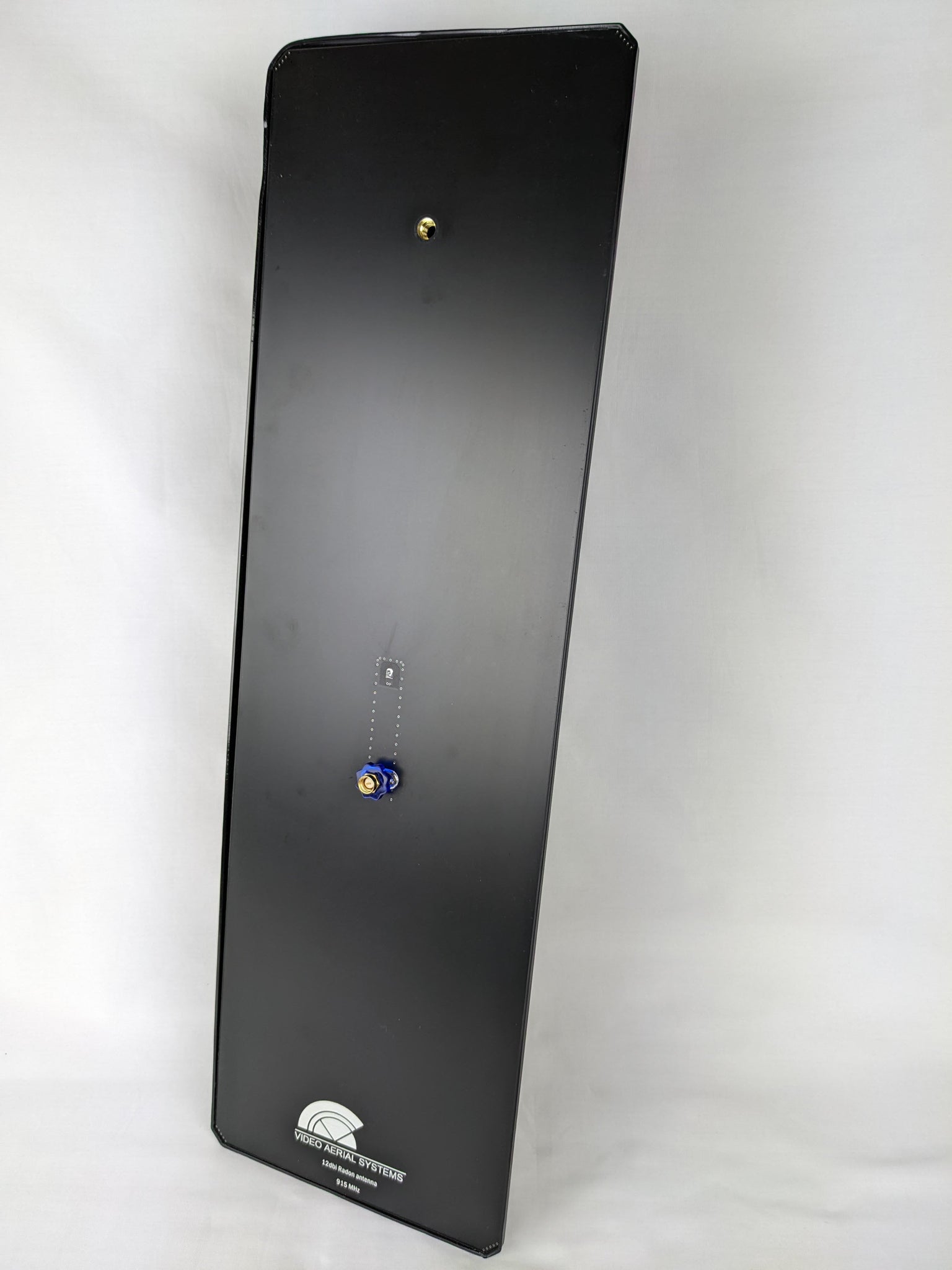

A 1/4-20” mounting thread located on the back of the antenna makes mounting the antenna simple. Just thread it into any standard camera tripod or secure it to your tower with a ¼-20 bolt. For those who don’t have a tower, The Radon’s front cover is flat allowing you to simply use double sided tape to secure it to a window.

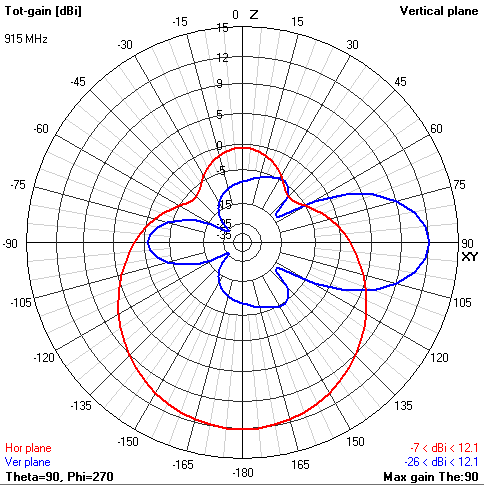

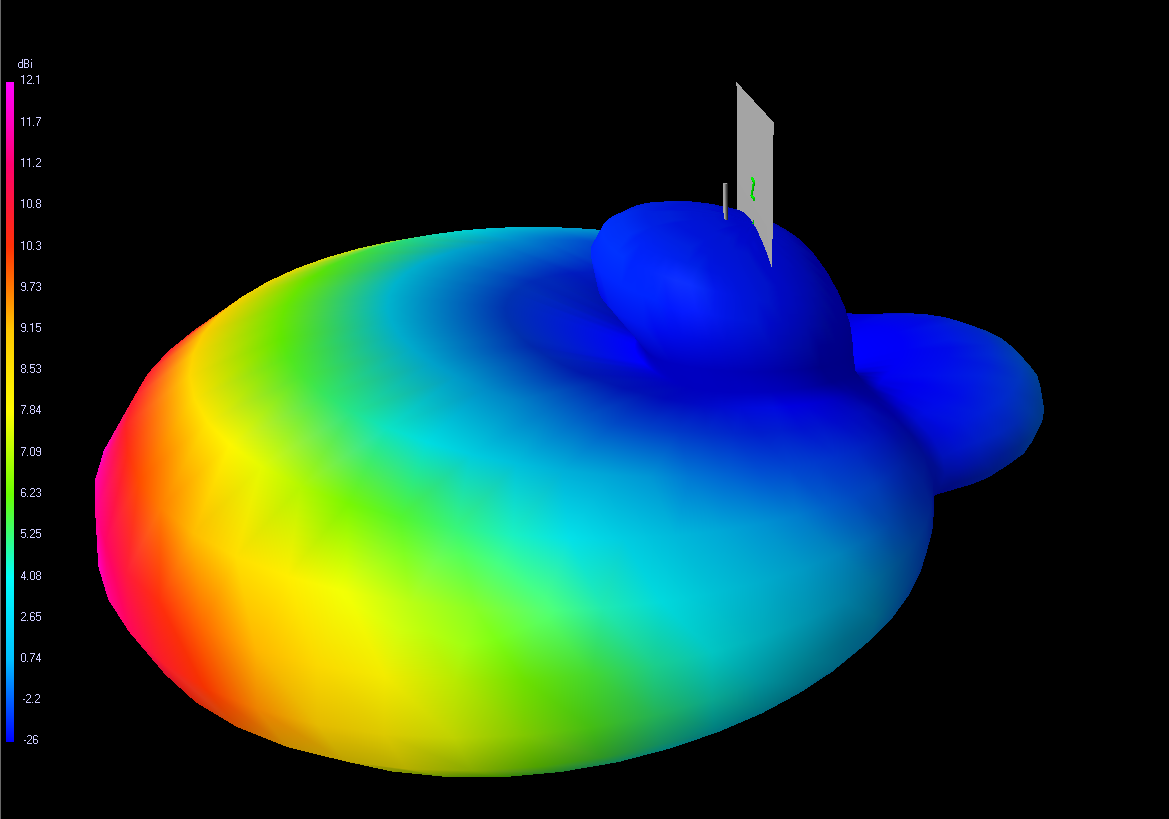

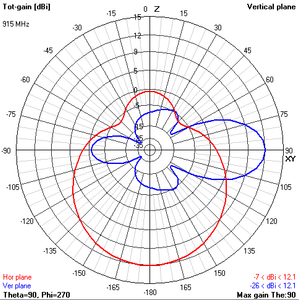

Long range beam width: 92 degrees
Full beam width (gain greater than 3db): 170 degrees
Vertical beam: 30 degrees
Connector: N-type Female
