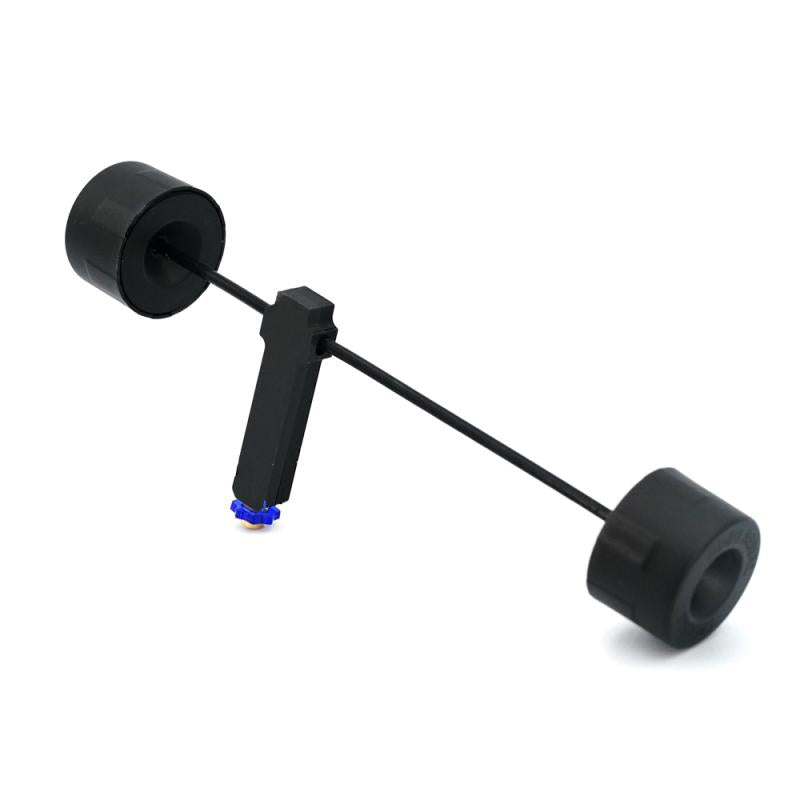

Long range and 360 degrees of coverage in one, the Sky Hammer is a true long range omni-directional antenna! Designed by IBCrazy, the Sky Hammer utilizes a pair of Patent Pending high performance Bluebeam® Pro antennas precisely phased and impedance matched to achieve 5.25dbic of gain and 360 degrees of coverage. The stacking and phasing takes the unused vertical coverage of a single antenna and pushes it outward along the horizon right where you need it. While typically considered to be a receiver antenna, the Sky Hammer can be mounted on a long range quad for exploring places where other antennas simply cannot reach. When using the Skyhammer on a VTX be sure to watch bank angles or you could point the null of the antenna directly at your receiver causing loss of signal.
US Pat. No.: 11,095027
Axial Ratio: 0.94 (measured)
Horizontal coverage: 360 degrees
Vertical coverage: +/- 20 degrees
